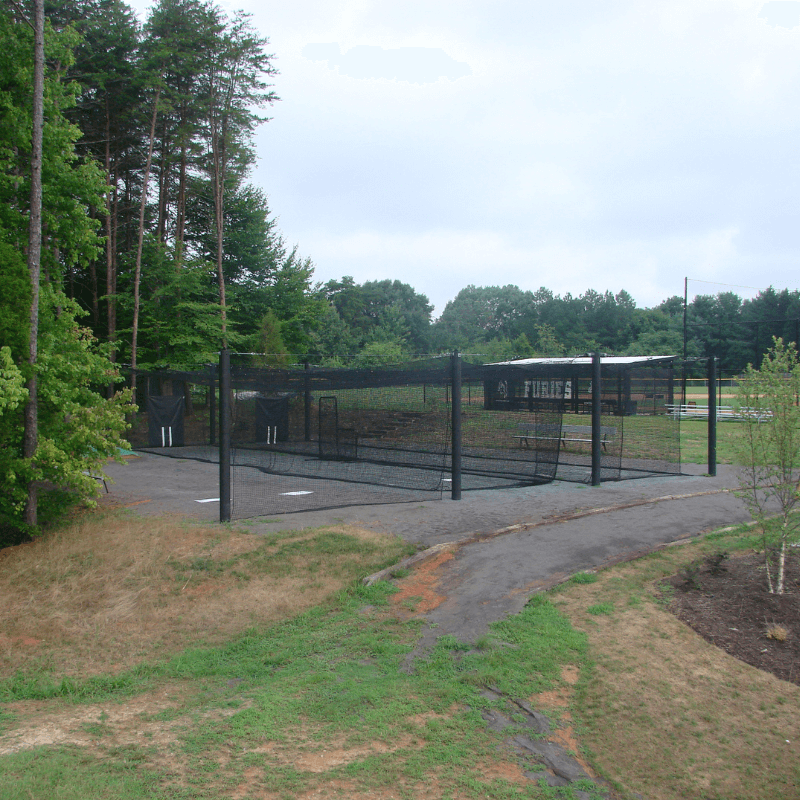

Double Stall Mastodon™ Engineered Batting Cage System in park

Mastodon™ Engineered Batting Cage System 12'H x 12'W x 55'L / Single

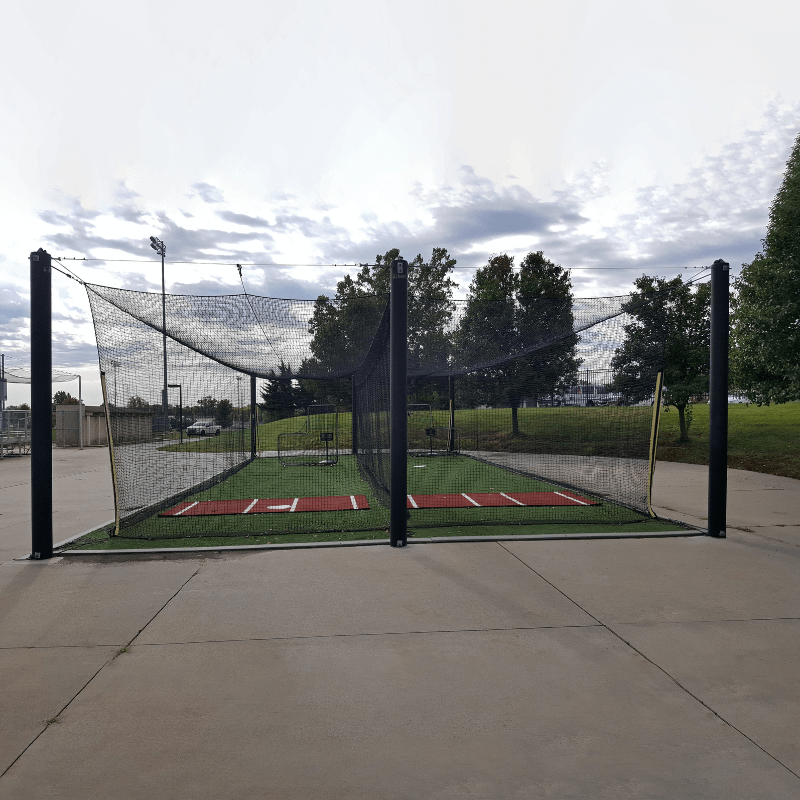

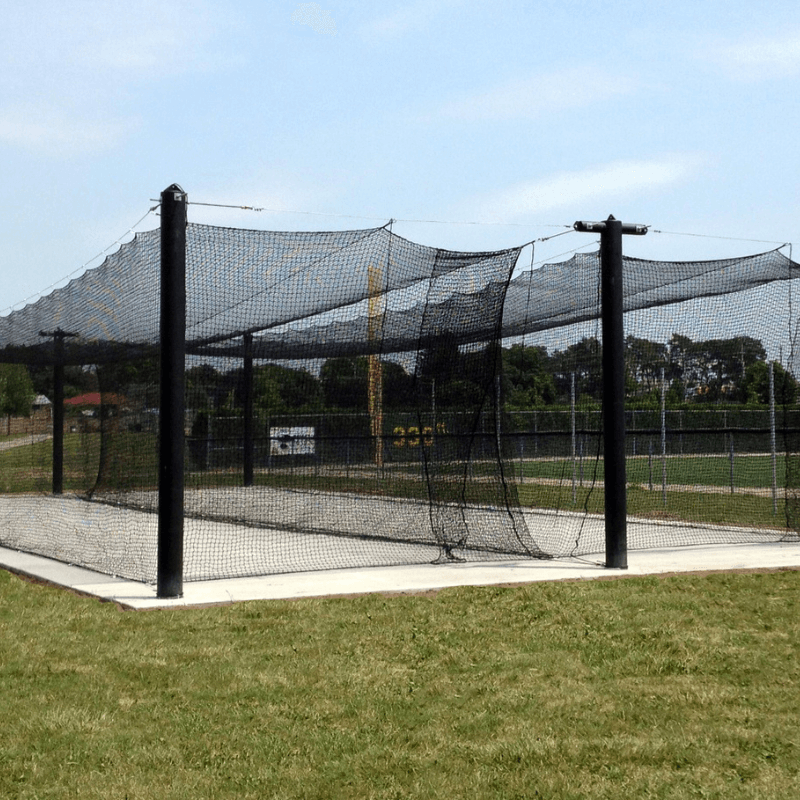

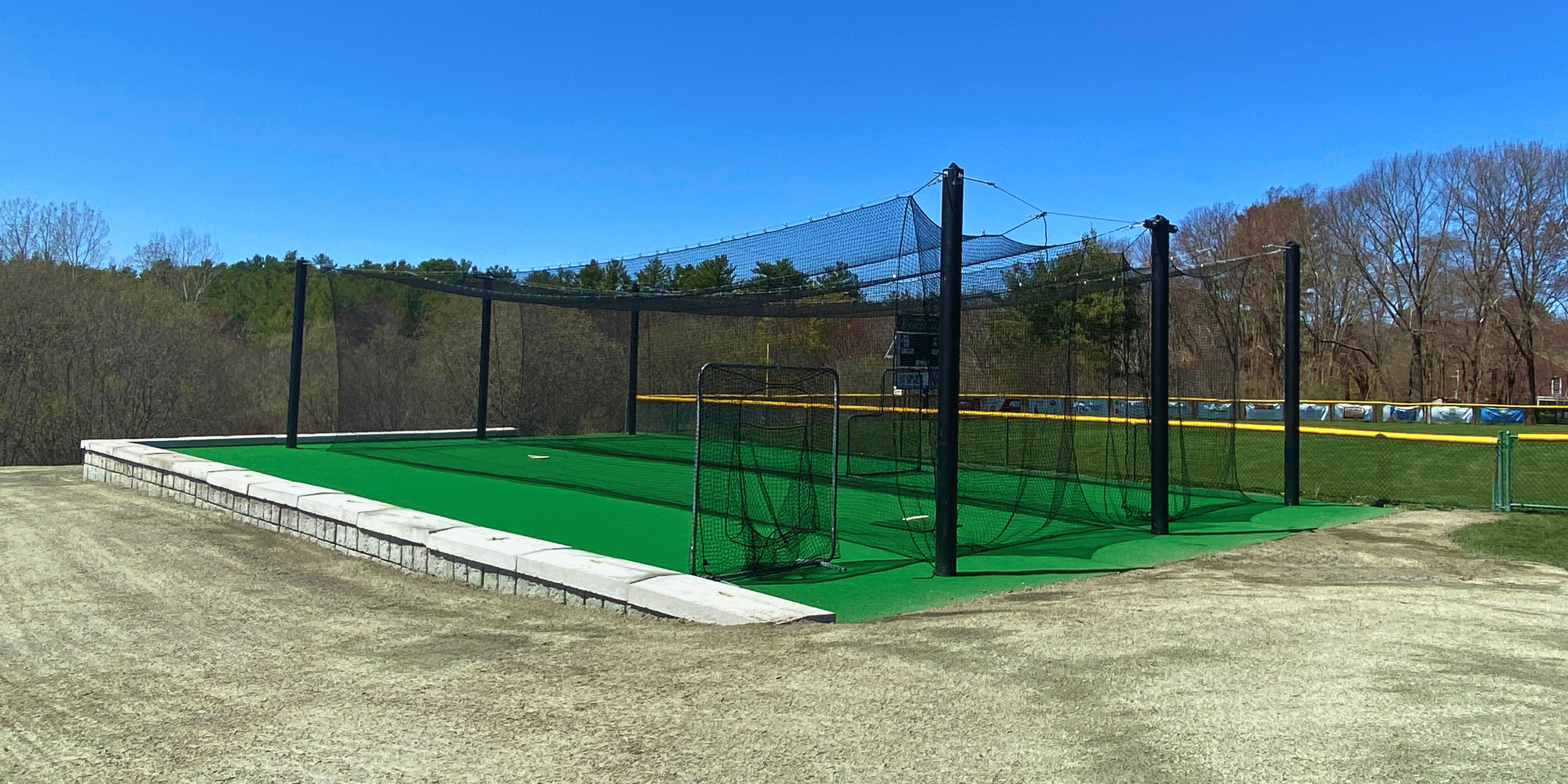

2 Stall Mastodon™ Engineered Batting Cage System

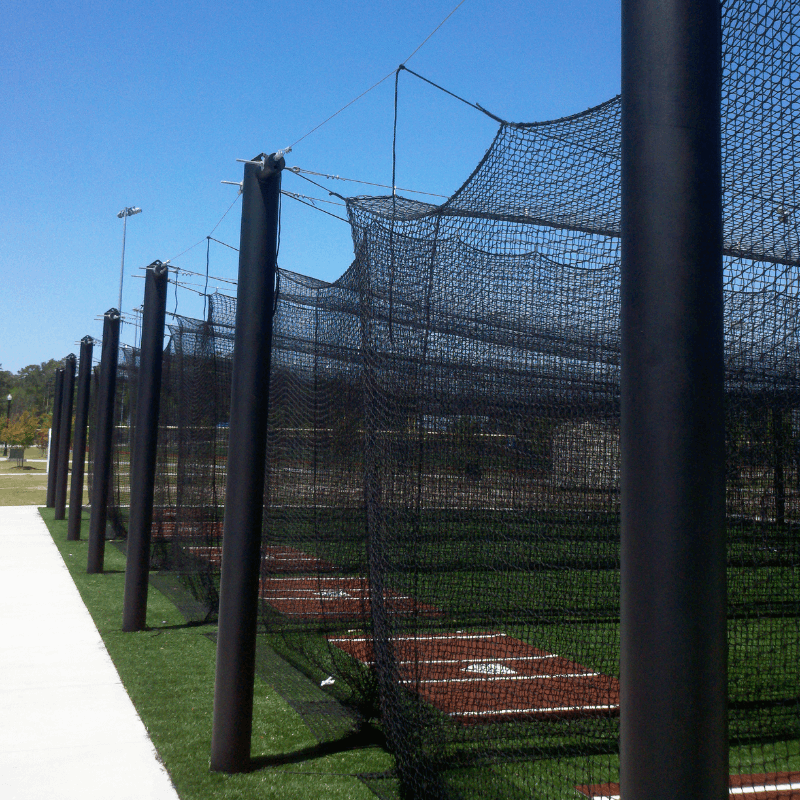

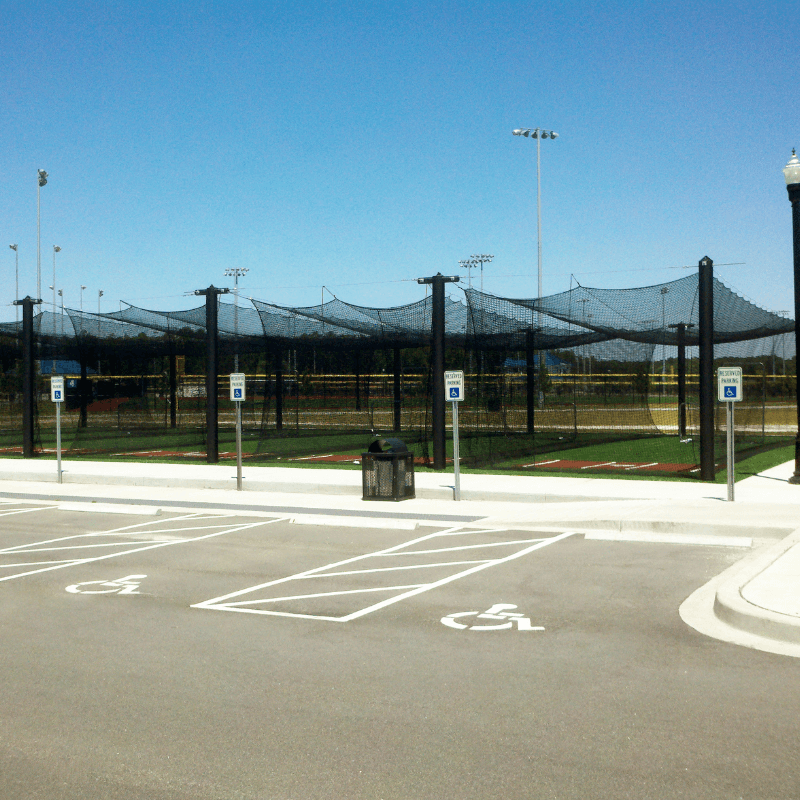

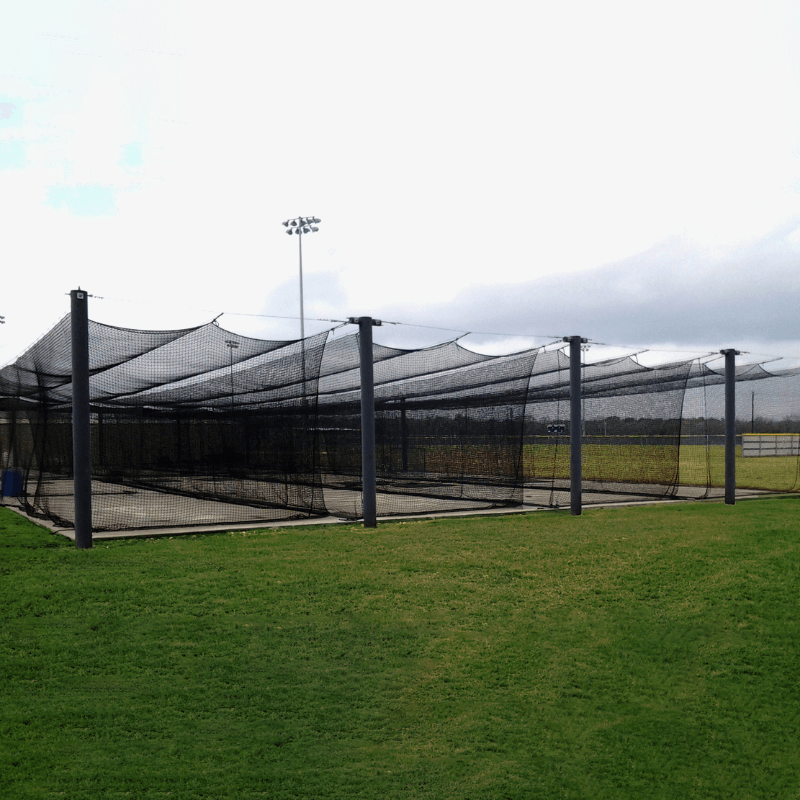

6-stall Mastodon™ Engineered Batting Cage System

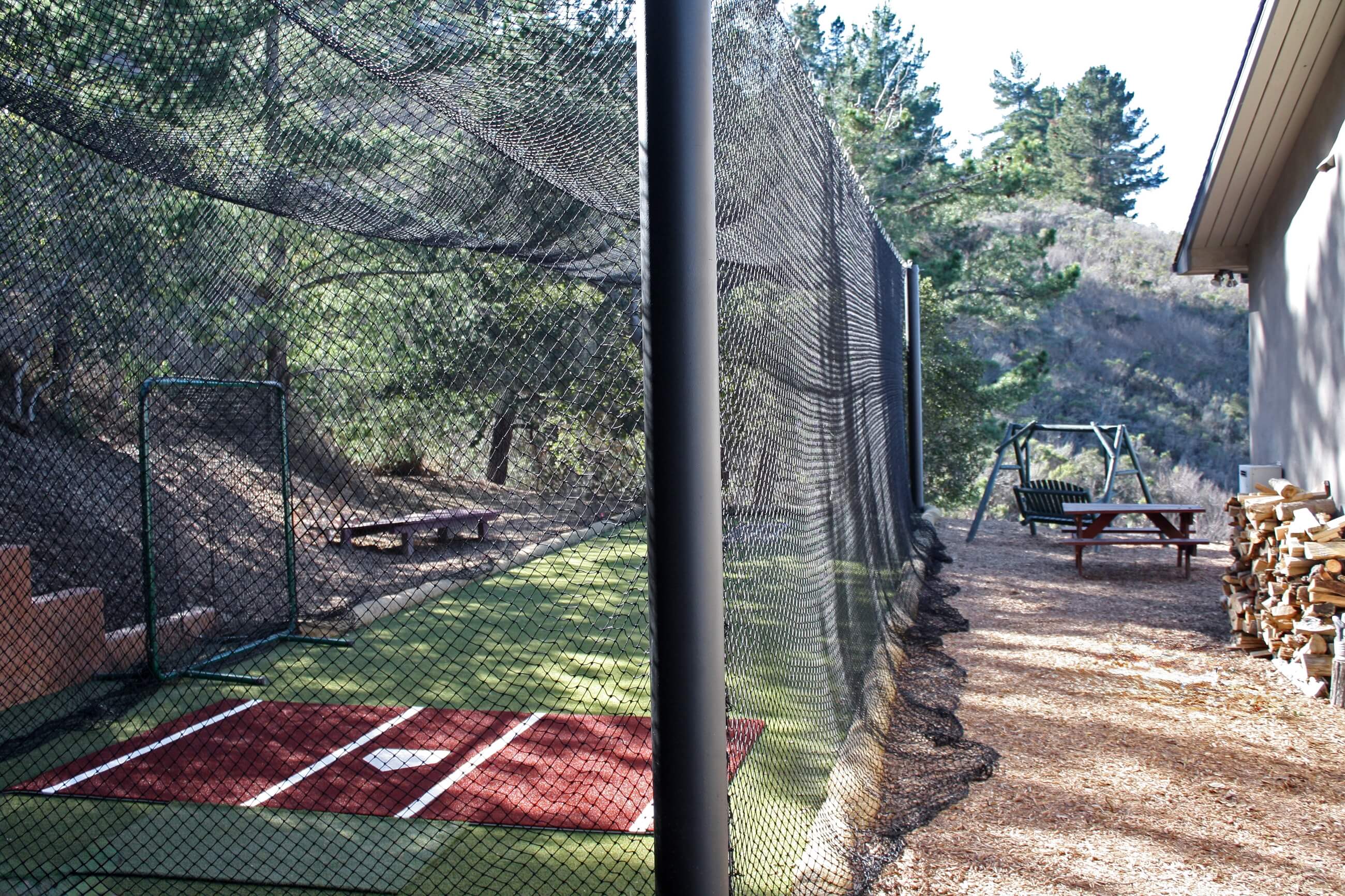

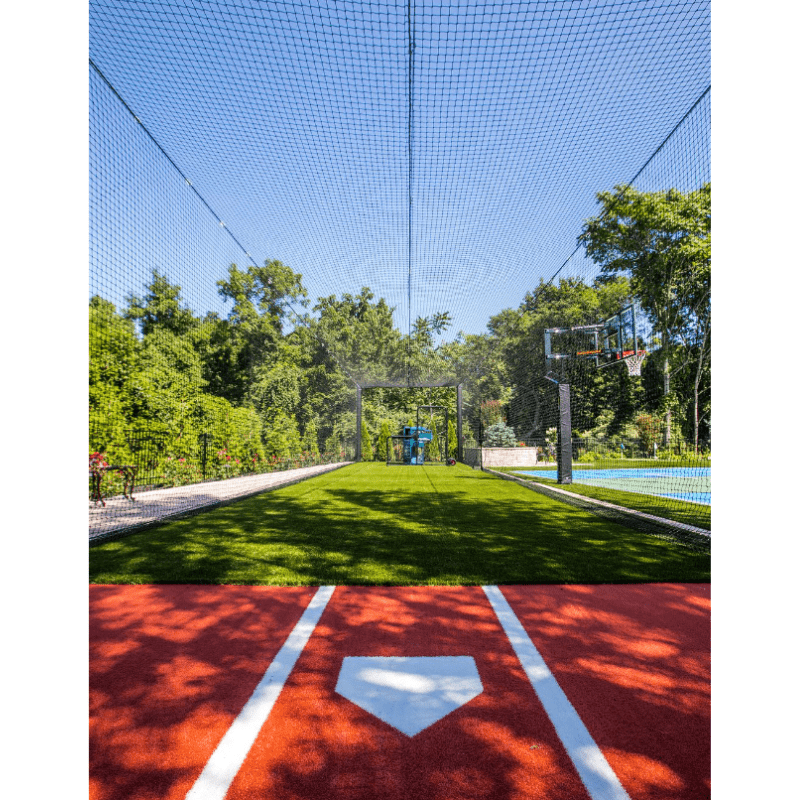

Mastodon™ Engineered Batting Cage System in backyard

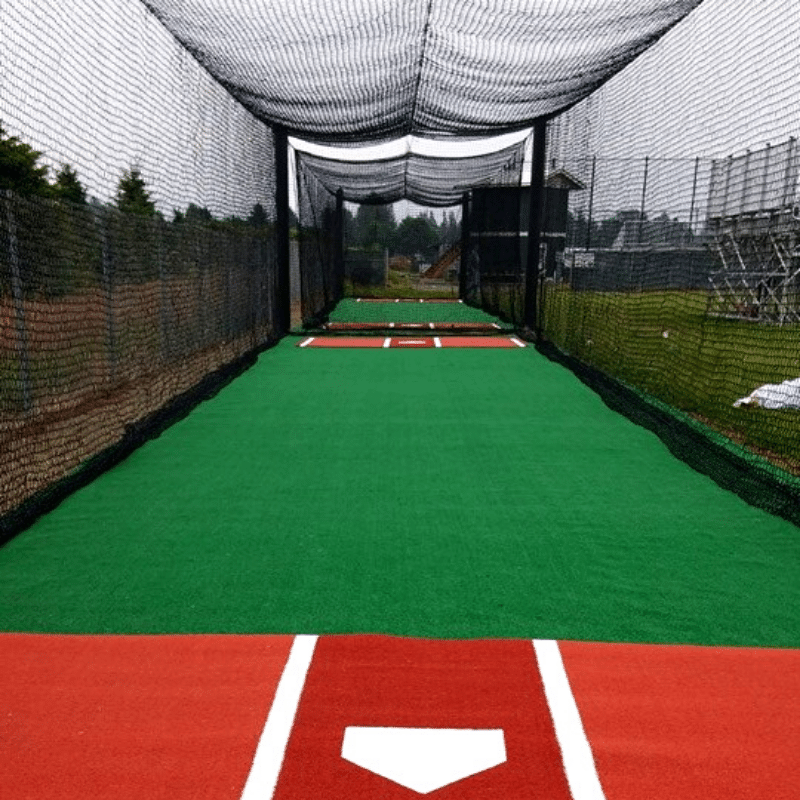

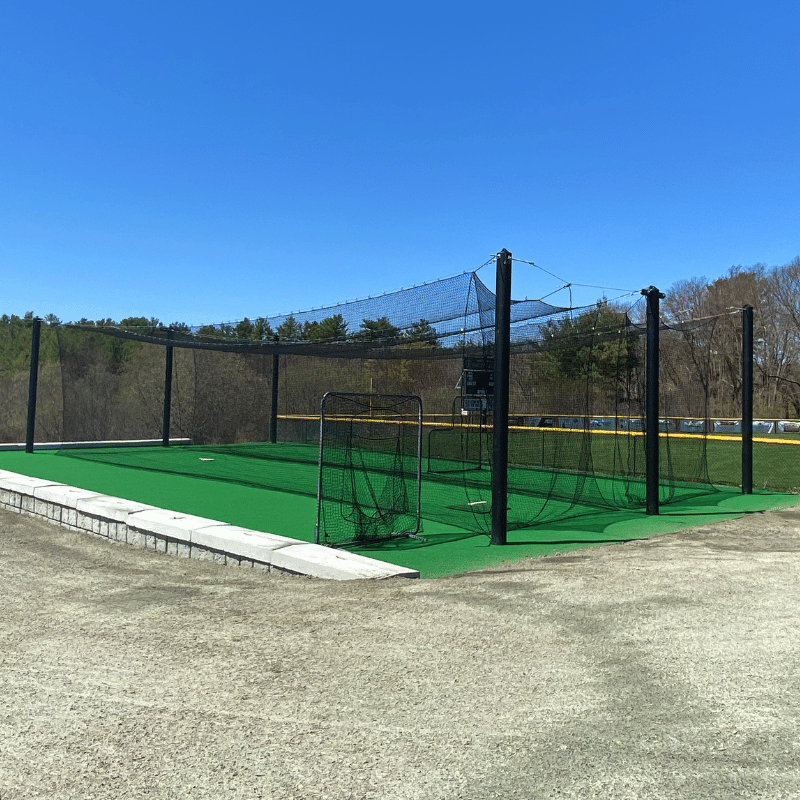

Double stall Mastodon™ Engineered Batting Cage System

Mastodon™ Engineered Batting Cage System soft toss netting

Mastodon™ Engineered Batting Cage System

(6)

SKU: PDB-12X12X55-K42-MAS-SW

Best SellerIn Stock NowInstallation Available

$8,669.00

Net Size:

12ft H x 12ft W x 55ft L

Stalls:

Single

Variant

The Mastodon™ batting cage frame system includes 8.625″ outside diameter structural steel pipes coated with the same finish used on the Alaska Pipeline. It has fewer components and offers free and clear spans up to 85′ in either direction – without significant sag. The poles come entirely prepared to accept our tensioning hardware. The cable tensioning system ensures that your net will hang adequately and needs no special tools.

*Note: Due to size, weight, and shipping distances, a custom shipping quote is required.

Multi Stall Mastodon™

Two Mastodon™ batting cages side by side, sharing the center poles. This system helps you save money on materials, labor, and shipping costs. Each cage is two feet apart so that balls from one lane will not injure players in another lane. Additional configurations are available by calling (800) 463-6865 (triple, quad, etc). All of the information listed above applies to this option.

*Be advised: Customer must be present to unload the shipment. Additional people/equipment (extended forks) may be required depending on the order size.

Specifications

Batting Cage Net

Twine Size: #42
Material: KVX200
Height: 12 ft or 14 ft
Width: 12 ft or 14 ft
Length: 35 ft, 55 ft, 70 ft, or 80 ft

Poles

Outside Diameter: 8.625 in
Powder Coated: Yes
Material: Galvanized Steel
Wall Thickness: Schedule 40

Backdrop

Material: Vinyl
Size: 5in W x 7in H

Features

Single or multi-stall options
Cable tensioning system
Installation available
20-year pole warranty
5-year limited net warranty (Learn more)

What's Included

#42 KVX200™ Beartrap net with an integrated door
8.625" Steel poles with corrosion-resistant coating
Vinyl backdrop w/ 2 hanging cords
Galvanized Steel Carabiners
300ft of 3/16" galvanized cable

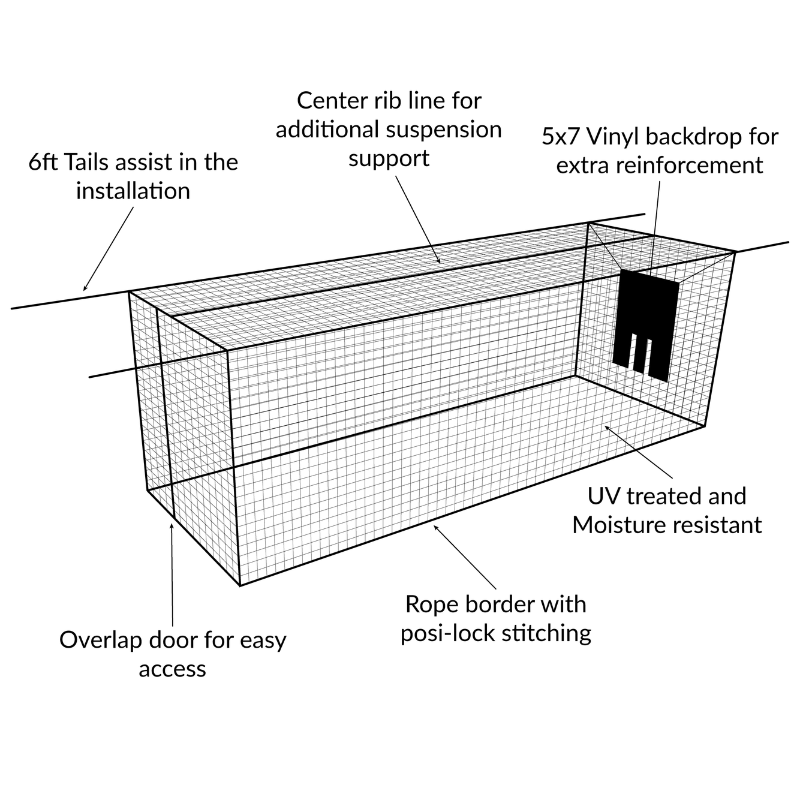

#42 KVX200 Beartrap Batting Cage Net

Our Beartrap™ net is simply the best outdoor commercial batting cage available. An excellent choice for a high-end backyard net, but also perfectly suitable for commercial applications! We have sold thousands of these cages to colleges, professional baseball teams, and municipalities.

Beartrap premium netting contains a UV inhibitor with a polymer commonly used in bulletproof vests. We extruded the individual fibers and braided them into twine. Lastly, we dipped the twine in a black carbon-based dye, adding UV protection and color stability. For quality assurance, we conducted side-by-side comparisons of KVX200™ and nylon. We found that these enhancements significantly extend the outdoor life of our netting. Our Beartrap netting remains intact and dark black while nylon slowly breaks down and fades to brown.

5x7 Vinyl Backdrop

Extend the life of your batting cage with our heavy-duty vinyl backdrop. This backdrop panel is 5' wide x 7' tall and is designed to take a beating from pitching machines.

Note: Please do not attach the lower corners of the vinyl backdrop tight to the net. Doing so will cause the net to tear from heightened wear. We recommend 6" of slack with twine or bungee loops.

8.625" Steel Poles with Corrosion-Resistant Coating

All poles are corrosion dipped, finished with STRYK 5388, and sealed with a welded top cap preventing internal corrosion. STRYK 5388 forms a solid coating that bonds to the substrate, preventing corrosion even if the coating is scratched or damaged. STRYK 5388 is a thick rust-inhibitive coating used on the Alaska pipeline with a high degree of impermeability to moisture. The finish remains highly flexible and elastic in extreme temperatures. It will not support fungal growth in humid or water-immersed environments or crack in extreme weather conditions.

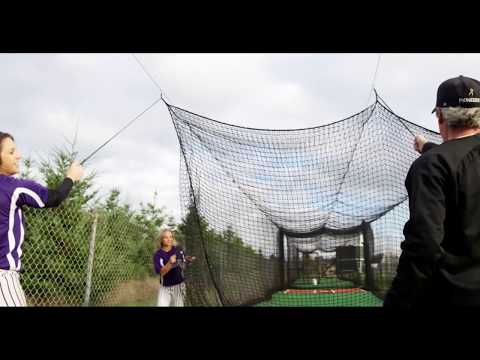

Cable Tensioning System

Our cable tensioning system uses galvanized hardware, including 3/16" aircraft cable, cable clamps, thimble eye nuts, eye bolts, institutional-grade threaded rods, and curved washers. To achieve the proper cable tension, the poles in the system shown have 11.5' exposed and approximately 4.5' in the ground.

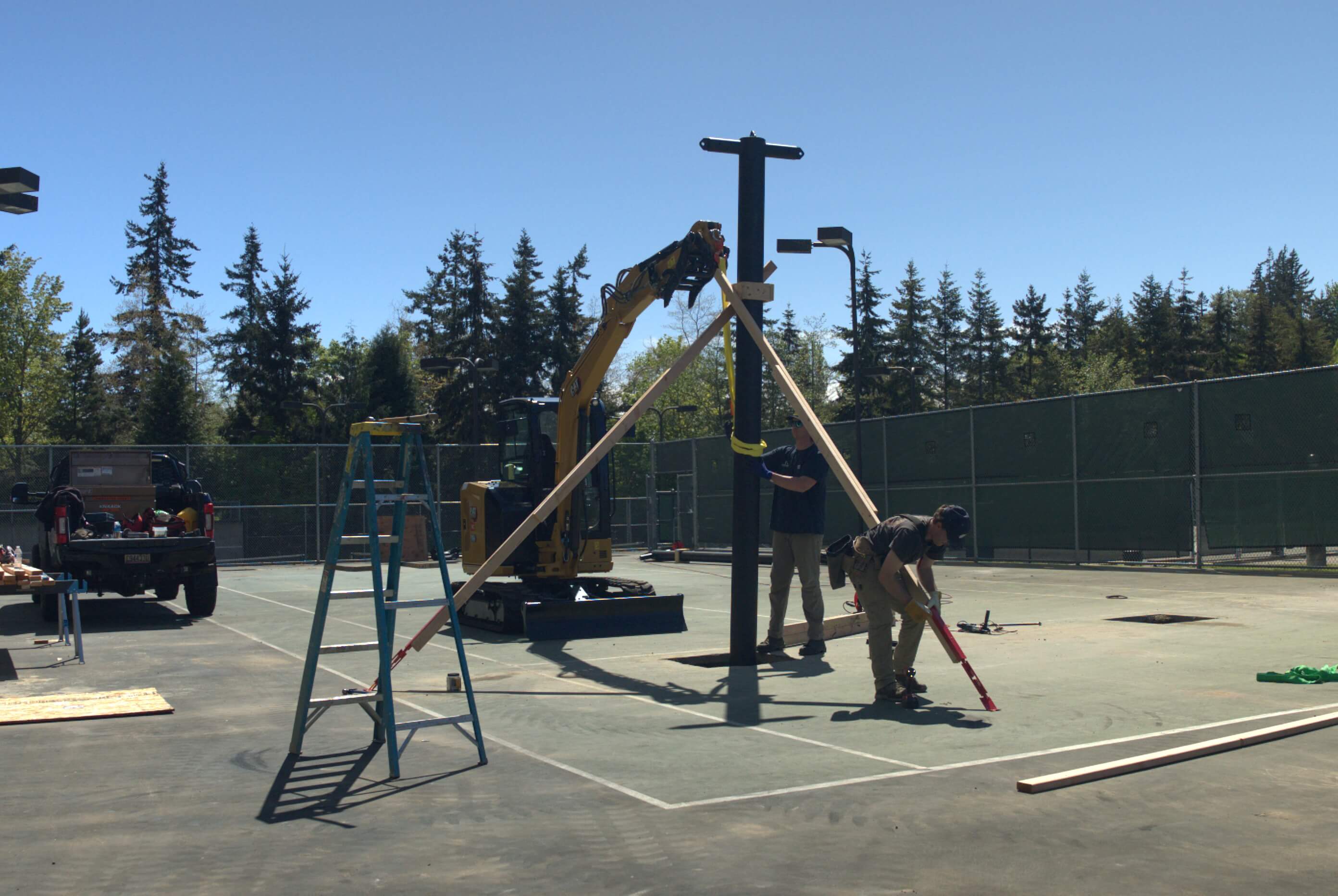

Installation

Our experience ranges from high-end backyard installations to multi-stall indoor batting practice facilities. Our installers do custom facilities and are qualified to manufacture and work on indoor or outdoor systems. So, whether you are looking for a ten-cage indoor system or a single cage in your backyard, consider BCI. Our craftsmen have been building batting cages for over 25 years – compare the quality!
